OnionHEN
An all-in-one HEN and Toolbox for PlayStation 5

简体中文 · English

Features · Run · Build · Configuration · Support · Credits

---

OnionHEN is a modular payload stack for the PS5. One entry ELF prepares the system, injects a ShellUI Toolbox,
and then runs overlays, cheats, payloads, and background services.

Features

OnionHEN is a practical homebrew stack for jailbroken PS5 consoles.

• ShellUI Toolbox — a settings page injected into the PS5 ShellUI
• System preparation — raise privileges, remount filesystems, and block the update partition
• fSELF / fPKG — bundled kstuff for homebrew SELF / PKG; loads by default, can be turned off in the Toolbox
• Plugin runtime — discovers, validates, starts, stops, and removes descriptor-bearing plugin ELFs
• PS5 FTP server — available as the optional external onionHEN-ftpsrv-plugin
• ShadowMount+ — available as the optional external onionHEN-shadowmountplus-plugin
• Remote Play pairing — enable the native PS5 Remote Play service, generate a pairing PIN, and register a client from the Network section
• User payload manager — start and stop user-provided .elf payloads, with optional auto-start

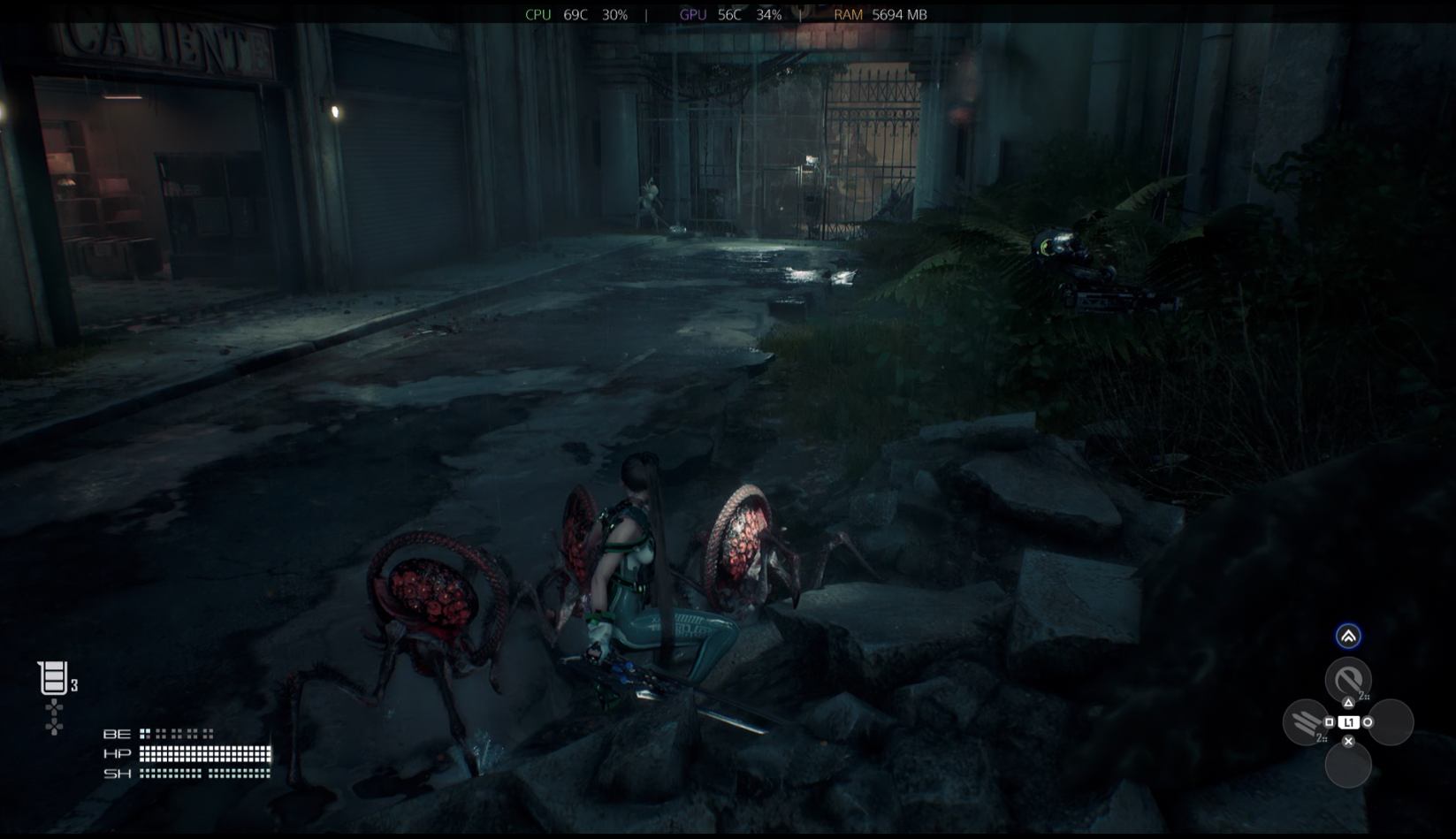

• Game overlay — an in-game bar for FPS, CPU, GPU, RAM, temperatures, and network info
• Cheat engine — local JSON, SHN, MC4, and ShnExt files that can be toggled at runtime
• DPI v2 — available as the optional external onionHEN-dpiv2-plugin
• Console tools — account activation, external HDD, Title IDs, fan control, shortcuts, and game options
• App jailbreak — allowlisted homebrew can ask the daemon for extra privileges through a sandbox FIFO
• Resilient runtime — the critical daemon and utility daemon run apart; the main daemon can restart the utility
• Shared configuration — the Toolbox and daemons use one versioned config.ini

OnionHEN does not include a kernel exploit. The first hop still needs an external elfldr on 9021. After that, OnionHEN starts its own private loader on 9020 for later ELF and user-payload launches.

Run

Requirements

1. A jailbroken PS5
2. An external PS5 elfldr listening on port 9021 for the first hop

Load OnionHEN

1. Run the kernel exploit and start the external elfldr service.
2. Send OnionHEN.elf through the loader your exploit host provides.
3. Wait for the utility daemon, kstuff, and the main daemon to start, in that order.
4. Open PS5 Settings and enter the OnionHEN Toolbox.

Startup is sequential. After the first hop, OnionHEN uses its own onion_elfldr.elf on port 9020 and keeps 9021 only as a fallback.

OnionHEN.elf → bootstrapper → onion_elfldr.elf (:9020) → util.elf → kstuff.elf → daemon.elf → Toolbox

External plugins are discovered and started by the daemon after kstuff is ready.

FTP server

FTP is provided by the separate onionHEN-ftpsrv-plugin. Install it as /data/OnionHEN/plugins/FTPS00001.elf; OnionHEN discovers and starts the plugin, and its dynamic settings page provides enable, port, and restart controls. The plugin retains upstream ftpsrv commands such as KILL, SELF, SCHK, MTRW, and AUTHID where supported.

ShadowMount+

ShadowMount+ is provided by the optional external onionHEN-shadowmountplus-plugin. Install its descriptor-bearing ELF under /data/OnionHEN/plugins/; the daemon then owns discovery, start, stop, replacement, and removal. Its dynamic page provides an immediate scan action. The plugin requires kstuff and keeps its own options under /data/shadowmount/config.ini.

DPI (network package installer)

DPI v2 is provided by the optional external onionHEN-dpiv2-plugin. Install it as /data/OnionHEN/plugins/DPIV00001.elf; OnionHEN discovers and starts it, and its dynamic settings page provides enable, API port, WebUI port, and restart controls. The browser remains the installer interface, including chunked uploads, queue management, staged-file reuse, and SSE progress. The default WebUI URL is http://<console>:12800.

Remote Play

Remote Play pairing is available from Toolbox → Network → Remote Play. The current account must already be activated. If it is not, OnionHEN blocks the Remote Play page and directs you to Toolbox → Account → Account activation. Once the account is activated, OnionHEN enables the Remote Play registry setting and displays the pairing PIN. Enter that PIN in the official Remote Play client while the page is open; OnionHEN uses the native PS5 Remote Play service to confirm the registered device.

The feature provides pairing and registration only. Video streaming and client transport remain handled by Sony's native Remote Play service.

Payloads

Place standalone payloads in:

/data/OnionHEN/payloads/

Only plain .elf files are supported. Auto-start can be turned on in the Toolbox; OnionHEN remembers that choice with a matching .auto_start file next to the ELF.

All .elf filenames use the same Payload page, loader, and auto-start flow. A recorded running instance is left running by later launch and auto-start requests. OnionHEN plugins are a separate category and belong in /data/OnionHEN/plugins/.

Cheats

Put cheat files in one directory. Names are TITLEID_VERSION, with an optional process and 8-hex source ID:

/data/OnionHEN/cheats/<TITLE_ID>_<VERSION>[_<PROCESS>][_<SOURCE_ID>].json
/data/OnionHEN/cheats/<TITLE_ID>_<VERSION>[_<PROCESS>][_<SOURCE_ID>].shn
/data/OnionHEN/cheats/<TITLE_ID>_<VERSION>[_<PROCESS>][_<SOURCE_ID>].mc4
/data/OnionHEN/cheats/<TITLE_ID>_<VERSION>[_<PROCESS>][_<SOURCE_ID>].ShnExt

PROCESS is optional. SOURCE_ID is a stable physical-source discriminator. OnionHEN loads every compatible source for the title/version/process, so independent JSON, SHN, MC4 and ShnExt files can coexist. A source with an explicit process is only used for that process; a source without one is generic.

Cheats load from disk. If a file changes, OnionHEN reloads it without restarting the whole stack.

DOWNLOAD_CHEATS downloads a cheat catalog ZIP over HTTPS (GitHub or cnb.cool), extracts the cheats/ tree, and copies json/, shn/, and mc4/ files into this directory with their original names. [cheats] mirror=auto uses cnb.cool when the UI/system language is Simplified Chinese, otherwise GitHub.

Build

Dependencies

Dependency	Purpose
PS5 Payload SDK	Prospero compiler, target headers, runtime, and CMake wrapper
CMake 3.20+ and Ninja	Configure and build the payload graph
Clang / LLVM	Compile the x86_64-sie-ps5 targets
lzma or xz	Compress the bootstrapper
Git and curl or wget	Initialize submodules and fetch external payload inputs

Full build

git submodule update --init --recursive

export PS5_PAYLOAD_SDK=/path/to/ps5-payload-sdk
./scripts/build.sh --jobs 8

The script configures the project, fetches external dependencies, and builds the embed chain in the required order.

For the reproducible Docker build:

docker compose build onionhen-build
docker compose run --rm onionhen-build

Common options

Option	Description
--build-type Debug|Release	Select the CMake build type
--build-dir <path>	Override the default build/ directory
--cache-dir <path>	Override .cache/dependencies/
--stub-missing	Use compile-only placeholder external ELFs; never use on hardware
--skip-unpacker	Stop after building the bootstrapper
--init-submodules	Initialize submodules before dependency sync

Run ./scripts/build.sh --help for the complete option list.

Outputs

Path	Description
build/bin/OnionHEN.elf	Final payload sent to the console
build/bin/bootstrapper.elf	Uncompressed bootstrapper
build/bin/bootstrapper.elf.lzma	Bootstrapper embedded by the final payload
build/bin/daemon.elf	Critical daemon
build/bin/util.elf	Utility daemon
build/bin/shellui.elf	Toolbox injection payload
build/lib/*.a	In-tree static libraries

Build outputs stay in build/. Downloads are cached in .cache/dependencies/. Nothing is written back into source/.

Tests

Host tests cover settings, IPC, payload helpers, cheat parsers, relocation, Toolbox routing, and shared platform code:

make -C source/util/tests clean
make -C source/util/tests test -j8

Linking the host tests needs Keystone on KEYSTONE_PREFIX (default: /opt/homebrew).

Configuration

OnionHEN reads and writes the same config in two places:

/data/OnionHEN/config.ini
/user/data/OnionHEN/config.ini

Most options can be changed in the Toolbox. The format is schema_version=1. If no file exists, OnionHEN writes a commented default from config.ini.example.

Key	Default	Values
meta.schema_version	1	1
toolbox.language	system	system, zh-Hans, zh-Hant, en, ja, ko, fr, de, it, es, pt-BR, pl, ru, ar, th
startup.open_after_load	none	none, home_menu
home_screen.show_title_ids	false	true, false
game_menu.show_onionhen_options	true	true, false
rest_mode.resume_reinject_delay_seconds	10	0 through 255 seconds
cheats.mirror	auto	auto, github, cnb
app_jailbreak.debug_notifications	false	true, false
cooling.fan_control	automatic	automatic, temperature_threshold
cooling.temperature_threshold_celsius	77	0 through 100
overlay.enabled	true	true, false
overlay.background	true	true, false
overlay.edge	top	top, bottom
overlay.align	center	left, center, right
overlay.font_size	medium	small, medium, large
overlay.order	fps,cpu,gpu,memory,ip,fan	comma-separated fps, cpu, gpu, memory, ip, fan
overlay.show_cpu / overlay.show_gpu / overlay.show_memory / overlay.show_fps	true	true, false
overlay.cpu_usage_mode	average	average, per_core
overlay.show_ip_address	false	true, false
shortcuts.cheats_menu	off	off, r3_l3, l2_triangle, long_options, long_share, share
shortcuts.toolbox	off	off, l2_r3, long_share, share

Runtime data

Path	Purpose
/data/OnionHEN/payloads/	User payload ELFs
/data/OnionHEN/plugins/	Descriptor-bearing OnionHEN plugin ELFs
/data/OnionHEN/cheats/	Cheat files
/data/OnionHEN/cheats_tmp/	Temporary HTTPS ZIP and extraction files, cleaned after sync
/data/OnionHEN/kstuff.elf	Optional runtime override with priority over the embedded kstuff
/data/OnionHEN/OnionHEN.log	Main runtime log
/data/OnionHEN/OnionHEN_crash.log	Preserved daemon signal and backtrace log
/data/OnionHEN/OnionHEN_util_daemon.log	Utility daemon log

Host tools

Tool	Purpose
scripts/daemon_log.py	Stream daemon logs from the console
scripts/shutdown_onion.py	Shut down the OnionHEN userland stack without killing kstuff
scripts/ps5_cmake.sh	Run CMake through the PS5 payload SDK
scripts/sync_dependencies.sh	Fetch or build external payload inputs

Repository layout

.
├── assets/                    Project artwork
├── docs/                      Architecture and technical notes
├── scripts/                   Build, dependency, and host-side helpers
├── source/                    In-tree PS5 sources
│   ├── bootstrapper/          Startup and embedded payload chain
│   ├── daemon/                Critical daemon and Toolbox injection
│   ├── util/                  Utility daemon, IPC, and cheats
│   ├── shellui/               Toolbox and ShellUI hooks
│   ├── i18n/                  Shared Toolbox / notification locale catalogs
│   ├── unpacker/              Final OnionHEN payload wrapper
│   ├── libonion_*/            Shared in-tree libraries
│   ├── common/                Shared low-level implementations
│   └── platform/ps5/stubs/    PS5 system-library link stubs
├── third_party/               External source, archives, and submodules
├── tools/                     Repository-side generators
├── build/                     Generated build outputs (ignored)
└── .cache/dependencies/       Downloaded external inputs (ignored)

See the architecture document for the complete module and IPC map.

Troubleshooting

1. Before loading OnionHEN, make sure the external elfldr is reachable on port 9021.
2. Make sure the payload was built for this firmware with a complete PS5 Payload SDK.
3. If the Toolbox does not appear, wait for util → kstuff → daemon to finish and check the logs.
4. If the build cannot get kstuff.elf, run ./scripts/sync_dependencies.sh again or initialize the submodule.
5. When you report a problem, include firmware, exploit host, SDK version, build type, logs, and steps to reproduce.

Contributing

See CONTRIBUTING.md.

Support

For Chinese users, you can also scan the QR codes below to donate:

国内用户也可以扫描下方二维码进行捐赠：

Alipay (CN)	WeChat (CN)

If OnionHEN is useful to you, consider supporting further development. Thank you.

Credits

OnionHEN exists because of the PS5 homebrew and reverse-engineering community.

Contributors

Based on

• etaHEN — LightningMods and contributors; source base of this tree
• GoldHEN — SiSTR0 and contributors; the PS4 all-in-one HEN this project takes after

Referenced

• kstuff-lite — EchoStretch, sleirsgoevy, and contributors; Rest Mode Toolbox recovery follows its SceSysCore NOTE_EXEC watch for NPXS40087 and wait for libSceNpTrophy.sprx / libSceNpTrophy2.sprx
• ps5-payload-manager — itsplk; listen-socket rebind after Rest Mode (Unix IPC and TCP accept-fail self-heal) follows this project
• HEN-Cheats-Collection — TeeKay87; the community cheat collection downloaded by the built-in cheat sync
• PHU Games Tools — ArkSama; the in-game FPS counter follows PHU Games Tools skip-hook sampling (/dev/dce scanout and DMAP reads of libSceAgcDriver)

Used or embedded

• PS5 Payload SDK — Prospero toolchain and headers
• elfldr — first-hop loader on port 9021; not shipped in the payload
• kstuff-lite — EchoStretch, sleirsgoevy, and contributors; optional kstuff.elf
• onionHEN-ftpsrv-plugin — optional external FTP server plugin based on drakmor/ftpsrv
• onionHEN-shadowmountplus-plugin — optional external ShadowMount+ scanner/mounter plugin based on Drakmor's project
• libhijacker — astrelsky; process hijack and kernel R/W
• NineS — buzzer-re; ShellUI injection
• cJSON — JSON parsing
• 7-Zip LZMA SDK — unpacker decompression
• miniz — cheat-file decompression

Testers

即食面, 雨之声, 大饼电玩, 安定区, 随风, 麒麟, 尼克库尔曼, 云, 啊烦, 小小蔡, B站谢锡榆, 荆枫

Thanks as well to everyone else who tested, researched, or sent usable feedback.

License

This project is licensed under the GNU General Public License v3.0. Third-party components retain their respective licenses and notices.

OnionHEN is an unofficial homebrew project and is not affiliated with Sony Interactive Entertainment. Use it only on hardware you own and at your own risk. No warranty is provided.
